SmartAngle: version 2
OEM product
SmartAngle is an Original Equipment Manufacturer (OEM) product meaning it is available for sale or licence to companies wishing to manufacture, distribute or sell it under the SmartAngle brand name or their own brand name but it is not available for purchase in individual units from Wordcraft.
Version 1 and version 2

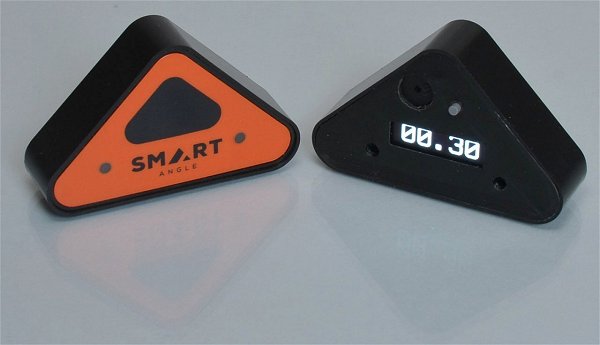

The photo below shows version 1 and a prototype version 2 side by side - both are the same size. Note: the membrane keypad has not been fitted on the prototype.
The version 2 piezo speaker is top left but this will be under the membrane in production. The button, top right, will be replaced with a revised membrane keypad. The hole spacing for LEDs is slightly different for version 2.
Features in common:
- Same shape and size
- Same data display and features on Apple/Android phones and tablets
- Same embossed tin box
- Same retail blister packaging
- Same single button interface
- Same internal magnets for adhering to steel surfaces
Changes:
- ATmega328p processor instead of PIC16F18325-I/SL
- MPU-9250 accelerometer instead of LIS331DLH
- HF-BL200 Bluetooth module instead of HF-BL100
- 32KB 24LC256 EEPROM for data storage
- Logging option to monitor and store angles over a long period of time
- New top moulding
- Modified base moulding for USB socket
- Modified membrane keypad to show OLED display
- Li-Poly 400mAh 35mmx25mmx5.5mm rechargeable battery instead of disposable 2032 button cell
- LEDs for "charging" and "fully charged"as well as a software-controlled LED

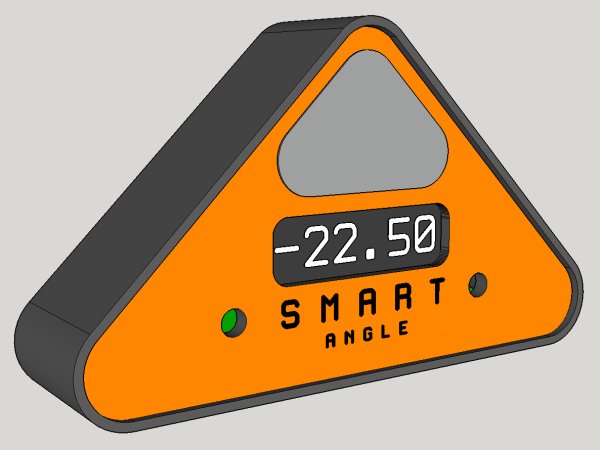

- 128 x 32 OLED display with large angle digits
- 9mm x 5mm piezo speaker with 2720MHz tone for warning beeps
- Micro USB socket in right hand side for battery recharging
- Full power on/off instead of processor going into sleep mode

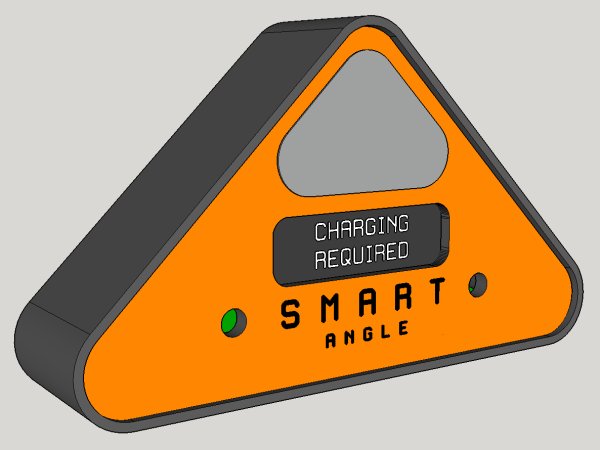

- Battery monitoring with "Charging Required" warning
- Battery saving with automatic power off after user-defined inactivity time
- Single button interface to select:
- Power on
- Zeroing mode on/off. Display is inverted (black on white) in zeroing mode
- Display voltage with percentage in reserve
- Display software version number
- Logging start/end
- Power off
Software features as version 1:
- Remote angle measurement for Apple iOS or Android phones/tablets.
- Bluetooth (BLE 4.0) compatible.
- Size: 52mm x 52mm x 67mm x 17mm.. Weight: 30g.
- Unlimited digital stops: set the angles and the SmartAngle app tells you when you are there. An initial set of stops is provided: 0, 22.5, 30, 45, 60, 67.5, 90 - and 75.96 (4:1 ratio for safe ladder angle.)
- Audible and visual warnings, on device and on smartphone, when the correct angle is reached - no need to look at the level - just wait for the "beep".
- Voice message to read out angles This feature may be turned on or off with one tap on the screen.
- User-defined "voice stability time" - a reading must be stable for this time before the angle is read out. Default: 3 seconds.
- Angles displayed in degrees, percentages (14.26%), ratios/falls/slopes (1:7), mm/m or in/ft. Tap the screen to change from one to another.
- Selectable resolution. E.g. for degrees: 1, 1.5, 1.1.
- Measures the difference between slopes - measure slope 1, measure slope 2, SmartAngle shows the angle between them.
- Temporary zeroing function for measuring relative angles.
- Step-by-step calibration instructions and diagrams shown on screen.
- Two rare earth magnets (internal) hold the long side to metal surfaces.
- Background colour selection - either as a solid colour or as a gradient (lighter in the centre of the screen).
Alternative styling
Version 2 can be produced in different styling if required. The version below is in a rectangular enclosure that fits within a short extrusion manufactured to extend the levelling base of SmartAngle.
